CAN Pressure sensor technical data |
| Overload range |
2 x nominal pressure |
| Burst pressure |
3 x nominal pressure |
| Signal type |
CANopen, digital |
| Supply voltage Ub |
| ... at 4 ... 20 mA |
12 ... 27 VDC |
| ... at 0 ... 10 VDC |
- |
| Current consumption |
10 ... 30 mA, depends on CAN bus load |
| Overvoltage protection |
± 40 VDC |
| Error limit (of fi nal value) |
comprises the infl uences non-linearity, hysterese, repeatability, zero-point- and span error |
| ... at +22 °C (room temperature) |
±0.5% |
| ... at -15 ... +85°C |
±0.5% |
| ... at +85 ... +100°C |
± 1.0 % |
| ... at -40 ... -15°C |
± 1.0 % |
| Compensation temperature range |
-15 ... +85 °C |
| Non-linearity |
< ± 0.2 % of final value |
| Reproducability |
< ± 0.1 % of final value |
| Hysterese |
< ± 0.1 % of final value |
| Long-term stability |
< ± 0.1 % of final value/year |
| Response time |
< = 1 ms (10 ... 90 %) |
| Frequency range |
< = 1 kHz |
| Isolation resistance |
min. 100 MOhm |
| Total resistance |
RG = (Ub -10 V) / 20 mA (at output signal 4 ... 20 mA) |
| Load resistance |
RL = > 5 kOhm (at output signal 0 ... 10 VDC) |
| Number of load cycles |
> 1 x 107 |
| Medium temperature |
-40 ... +105 °C |
| Environmental temperature |
-40 ... +105 °C |
| Storage temperature |
-40...+125 |
| EMV test |
EN 50081-2 and EN 50082-2 |
| Vibrational stability |
IEC 68-2-6 and IEC 68-2-36, 20 g |
| Shock stability |
50 g (11 ms half-sine) |

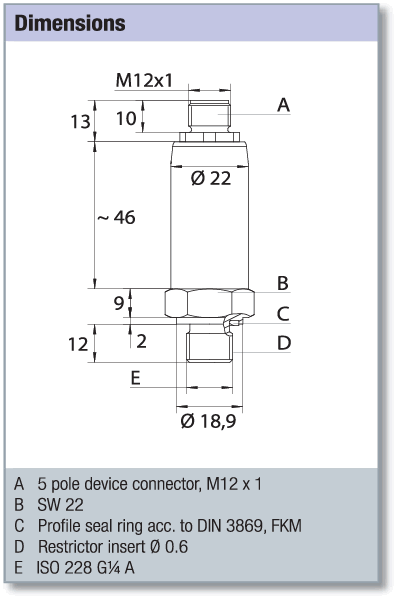

| Electrical measuring connector |
5 pole device connector, M12 x 1 |
| Mechanical connection thread |
ISO228-G1/4A |
| Sealing material |
profi le seal ring acc. to DIN 3869, FKM |
| Protection type (EN 60529 / IEC 529) |
IP 67 (with screwed connector) |
| Casing material |
non-corrosive high-grade steel |
| Membrane material |
non-corrosive high-grade steel |
| Tightening torque |
40 Nm (± 5 Nm) |
| Weight |
~ 100 g |
| CAN bus |
LSS slave function |
| Baud rate |
10 ... 500 kBaud (settable) |
| CAN interface |
acc. to DIN 11898 |
