Hydrotechnik Multi-Handy 3050

The top product of hydrotechnik Multi-Handy range offers all the functions and features that measurement technicians demand from mobile measuring systems. With the fourth input channel, the efficient operation-software, the large data storage and its USB interface, the hydrotechnik Multi-Handy 3050 opens-up even more extensive possibilities within professional measurement technology.
Hydrotechnik muti-handy3050 screen or online through the PC software can display all kinds of curves. It can print the report. It is the kind of complete the commissioning, acquisition equipment.
The MultiHandy 3050 is a suitable, user-friendly hand-held measuring instrument supporting the user in his daily measuring jobs.
When using hydrotechnik ISDS sensors the MultiHandy3050 detects the connected sensors automatically during initialization and takes over all parameters: measuring range,physical measured variable, units, signal output and characteristic curve (linearization). A confusion of the sensor is avoided and the entry of specific special characteristic data is no longer necessary.
Of course you can also connect sensors without hydrotechnik ISDS designation to your MultiHandy. Then you enter the sensor parameters in the operation menus.
All measurements can be transferred via an USB connection to a PC. The hydrotechnik software "HydroComSys" delivered free of charge offers comprehensive support with functions for evaluation, presentation and printing of the measured values.

Housing	ABS plastic
Weight (incl. batteries)	0.8 kg
Dimensions (H x W x D)	203 x 107 x 76 mm
Hydrotechnik Multi-Handy3050 Display	3,2" LCD with background illumination
Measurement display	4-digit, 2 or 4 lines
Menu display	8 lines
Interfaces	USB ,RS232 and parallel as printer connector
Protective installations	reverse polarity protection, overvoltage protection, self-reversive fuse resistors (PTC)
Hydrotechnik Multi-Handy3050 Battery	230 VAC / 24 VDC, 340 mA
Connector	power pack socket 6.3 mm
Ambient temperature	0° ... 50° C
Relative humidity	0 ... 80 %, not condensing
Storage temperature	-20° ... 70° C
Measured variables	e.g. pressure, temperature, volumetric flow, rotational speed, current, voltage,power, rotation moment, speed
Measuring value memory	0.9 MB, max. 450,000 measuring val. frequency max. 150,000 meas. val.
Program memory	512 kB Flash memory
Hydrotechnik Multi-Handy3050 Trigger	programmable: channel 1, 2, 3, 4,none or key
Scanning rate	1 ms ... 10 min. (programmable)
Measuring rate analog inputs	1mS
Measuring rate frequency input	period measurement from 0.5 Hz to 56 Hz; measurement time from 56 Hz = 17.7 ms
Series of measurement	Series of measurement max. 14
Peak value buffering	min./max.-values of all analog channels in background 1 ms
Error limit analog	± 0.2 % of end value
Error limit digital	± 0.2 % of measured value
Internal power supply	battery max. 17.5 V / 2 Ah

Multi-Handy3050	Description	Hydrotechnik Multi-Handy3050 Order number
	3x analogue/1x frequency	3160-00-63.00Multi-Handy3050

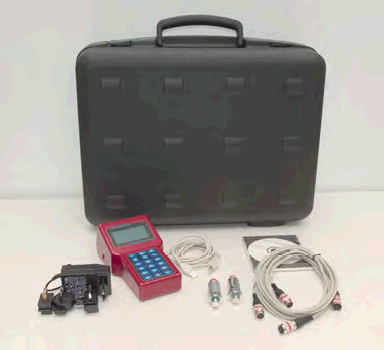

Measuring case containing: Measuring instrument Multi-Handy 3050 1 Power pack 24 VDC with adaptor 1 USB data transmission cable 1 MINIMESS® direct connection 1620 2 Software HYDROcomsys 1 Pressure sensors HT-PD with free selectable measuring ranges 2 Transport case 1 Measuring cables 5,0 m 2

2 pressure sensors with free selectable measuring ranges Order number measuring ranges 3050p/p- xx - xx -0.10.6Mpa=32 06 Mpa=21 020 Mpa=10 040 Mpa=15 060 Mpa=18

hydrotechnik Measuring set 3050 p/p/T/Q
	Measuring case containing: Measuring instrument Multi-Handy 3050 1 Power pack 24 VDC with adaptor 1 USB data transmission cable 1 MINIMESS® direct connection 1620 2 Software HYDROcomsys 1 Temperature sensor -50 °C to +200 °C 1 Pressure sensors HT-PD with free selectable measuring ranges 2 Measuring turbine with free selectable measuring range 1 Transport case 1 Measuring cables 5,0 m 4
hydrotechnik Measuring set 3050 p/p/T/Q Order number Order number 2 pressure sensors with free selectable measuring ranges 1 meas. turbine with free selectable meas. range 3050p/p/T/Q- xx - xx - xx -0.10.6Mpa=32   06 Mpa=21 01=110 020 Mpa=10 70=275 040 Mpa=15 71=9300 060 Mpa=18 72=16600
